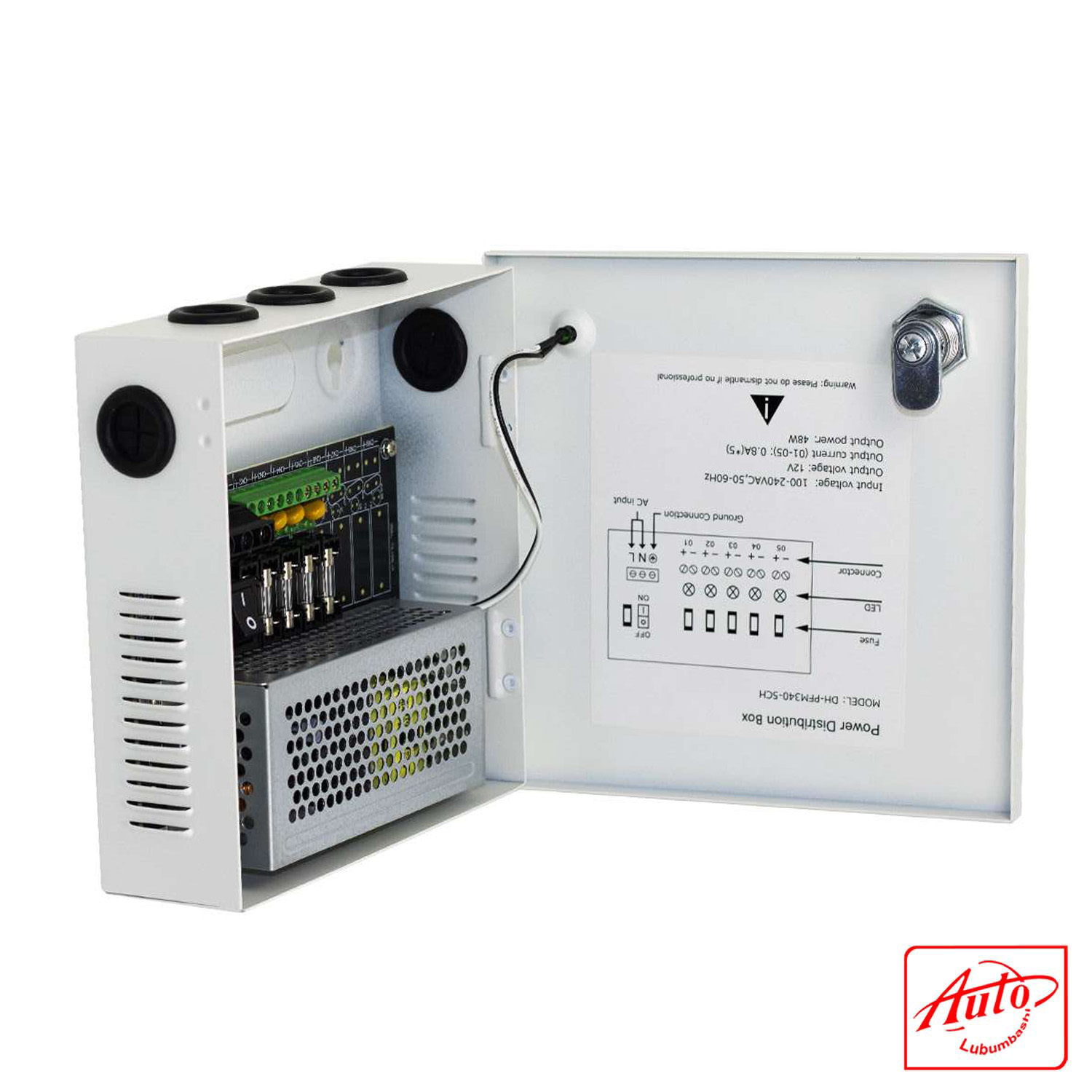

The DH-PFM340-5CH is a professional CCTV distributed power supply designed to provide stable and secure power to up to 5 security cameras. It features individual LED output indicators for each channel, a lockable metal enclosure to prevent unauthorized access, and reserved outlet holes for flexible wall-mounted installation.
With a wide input voltage range (AC90–264V), the unit adapts to electrical fluctuations across different regions. It ensures high reliability, having passed 100% quality examination and a 3-month high-temperature aging test.
The power supply includes overload, over-current, and over-voltage protection, as well as anti-static and anti-interference capability, making it ideal for professional surveillance environments.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFM340-5CH |
| Input Voltage Range | AC90–264V |
| Outputs | 5 × 12VDC (–3% ~ +7%) |
| Max Output Current | 4A |
| Output Protection | 5 replacement fuses, max. 2.5A per output |
| Efficiency | 84% |
| No-load Power Consumption | |
| Internal ON/OFF Switch | Yes |
| LED Indicators | Individual LED per channel |
| Surge Protection | Line-to-ground: 4000V; Line-to-line: 2000V |
| ESD Protection | Contact: 6000V; Air: 8000V |
| Operating Temperature | –20 °C to +45 °C (–4 °F to +113 °F) |
| Operating Humidity | |
| Weight | 0.85 kg (1.87 lb) |
| Dimensions | 165 × 165 × 50 mm (6.5” × 6.5” × 1.97”) |
| Installation | Wall mount |
| Color | White |
| Certifications | CE (EN55032, EN55020); FCC Part 15 Class B; ISED ICES-003 Issue 6 |
| Brand | Dahua |
