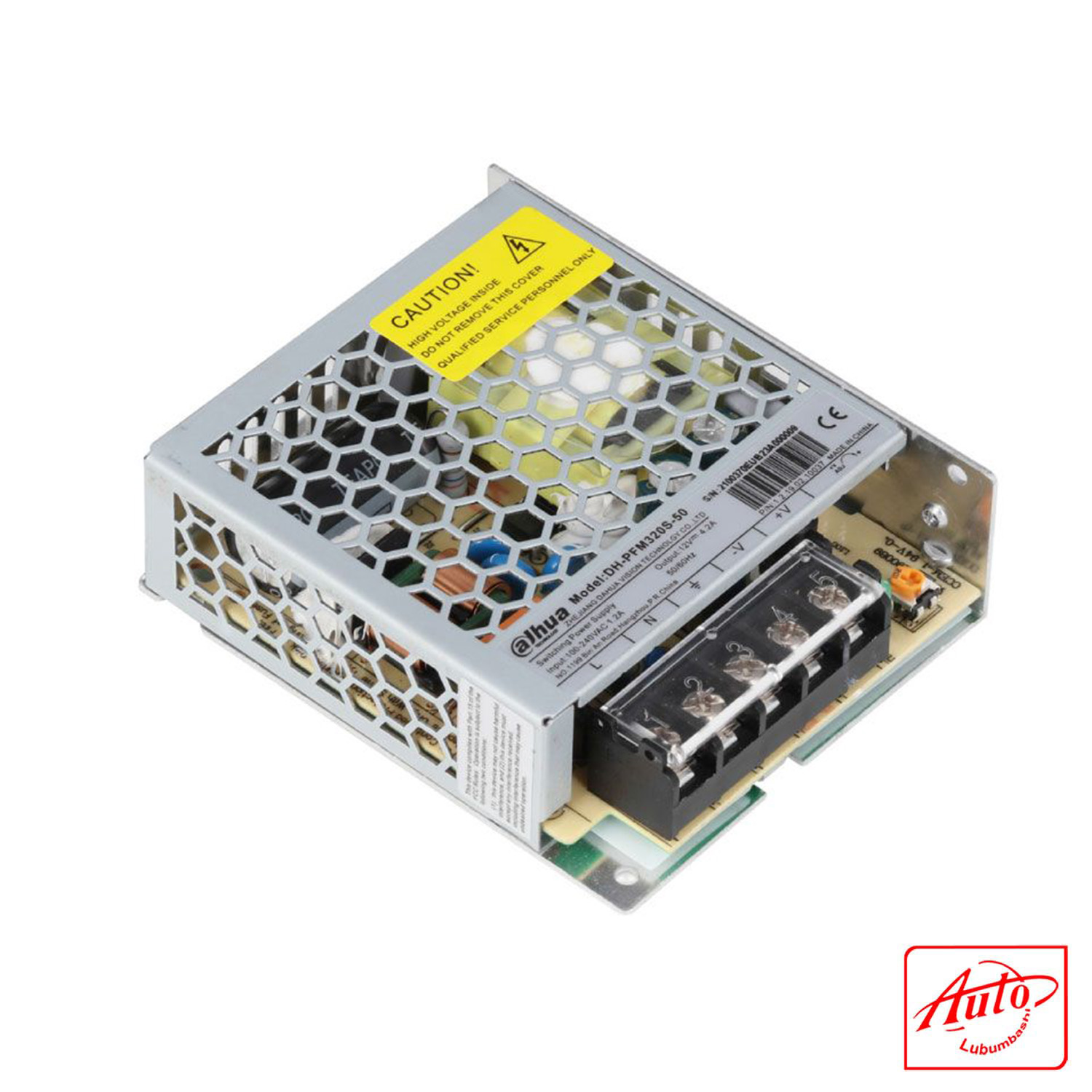

The DH-PFM320S-50 is a professional-grade switching power supply designed to deliver stable 12VDC output for multiple CCTV cameras and devices. It supports a wide input voltage range (90–264Vac), making it suitable for regions with electrical fluctuations.
The unit provides 50W output power with a rated current of 4.2A, and allows DC voltage adjustment (±10%) between 10.8V and 13.2V, ensuring flexibility for different loads in field applications. Built with high reliability, it passes a 3-month high-temperature aging test, guaranteeing long-term performance.
It includes surge protection (±2000V line-to-ground, ±1000V line-to-line) and ESD protection (±6000V contact, ±8000V air). With compact dimensions (99 × 82 × 30 mm), wall or ceiling mount installation, and metallic silver finish, the DH-PFM320S-50 is ideal for professional surveillance environments.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFM320S-50 |
| Input Voltage Range | 90–264Vac |
| Efficiency | 85% (@230Vac) |
| Output Voltage | 12VDC (terminal output) |
| Output Voltage Tolerance | ±5% |
| Adjustable DC Voltage Range | ±10% (10.8V–13.2V) |
| Rated Output Current | 4.2A |
| Output Power | 50W |
| No-load Power Consumption | |
| Surge Protection | Line-to-ground: ±2000V; Line-to-line: ±1000V |
| ESD Protection | Contact: ±6000V; Air: ±8000V |
| Operating Temperature | –20 °C to +50 °C (60% output at +70 °C) |
| Operating Humidity | |
| Weight | 0.2 kg (0.44 lb) |
| Dimensions | 99 × 82 × 30 mm (3.9″ × 3.23″ × 1.18″) |
| Installation | Wall mount / Ceiling mount |
| Color | Metallic silver |
| Certifications | CE, FCC |
| Brand | Dahua |
