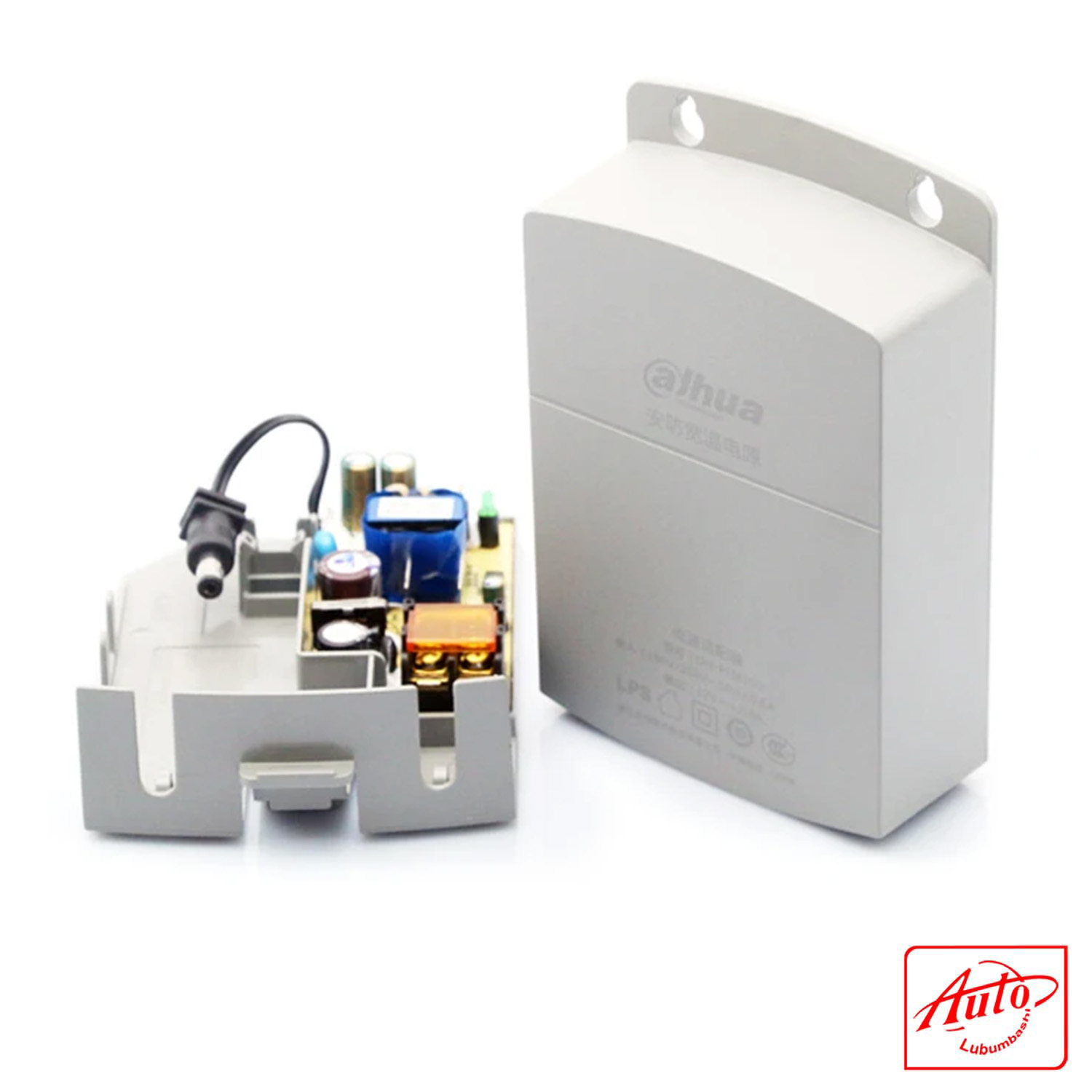

The DH-PFM300 is a professional-grade power adapter designed to provide stable 12VDC output for Dahua cameras and other compatible devices. It features easy installation with wall-mount capability, a structural waterproof design, and supports a wide operating temperature range (-30 °C to +70 °C) with 100% full load efficiency.
Made of PC environmental protection material that meets “V0” fire protection standards, the adapter ensures safety and reliability. It also includes a junction function for camera wiring or placement of a video balun for HDCVI/AHD/TVI/CVBS cameras. With accurate over-current and voltage load protection, the DH-PFM300 is ideal for professional surveillance installations.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFM300 |
| Input | AC 180–264V, 50/60Hz, 0.6A |
| Efficiency | 82% |
| No-load Power Consumption | |
| Output Voltage | DC12V (±5%) |
| Output Current | 2A (±2%) |
| Protections | Over-current, voltage load protection; V0 fire protection |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | |
| Weight | 160 g (0.35 lb) |
| Dimensions | 88 × 37 × 138 mm (3.46” × 1.46” × 5.43”) |
| Installation | Wall mount |
| Color | Grey |
| Input Terminal | Palisade terminal |
| Output Connector | DC output wire 60 mm (φ5.5 × φ2.1) |
| Certification | CE |
| Brand | Dahua |
