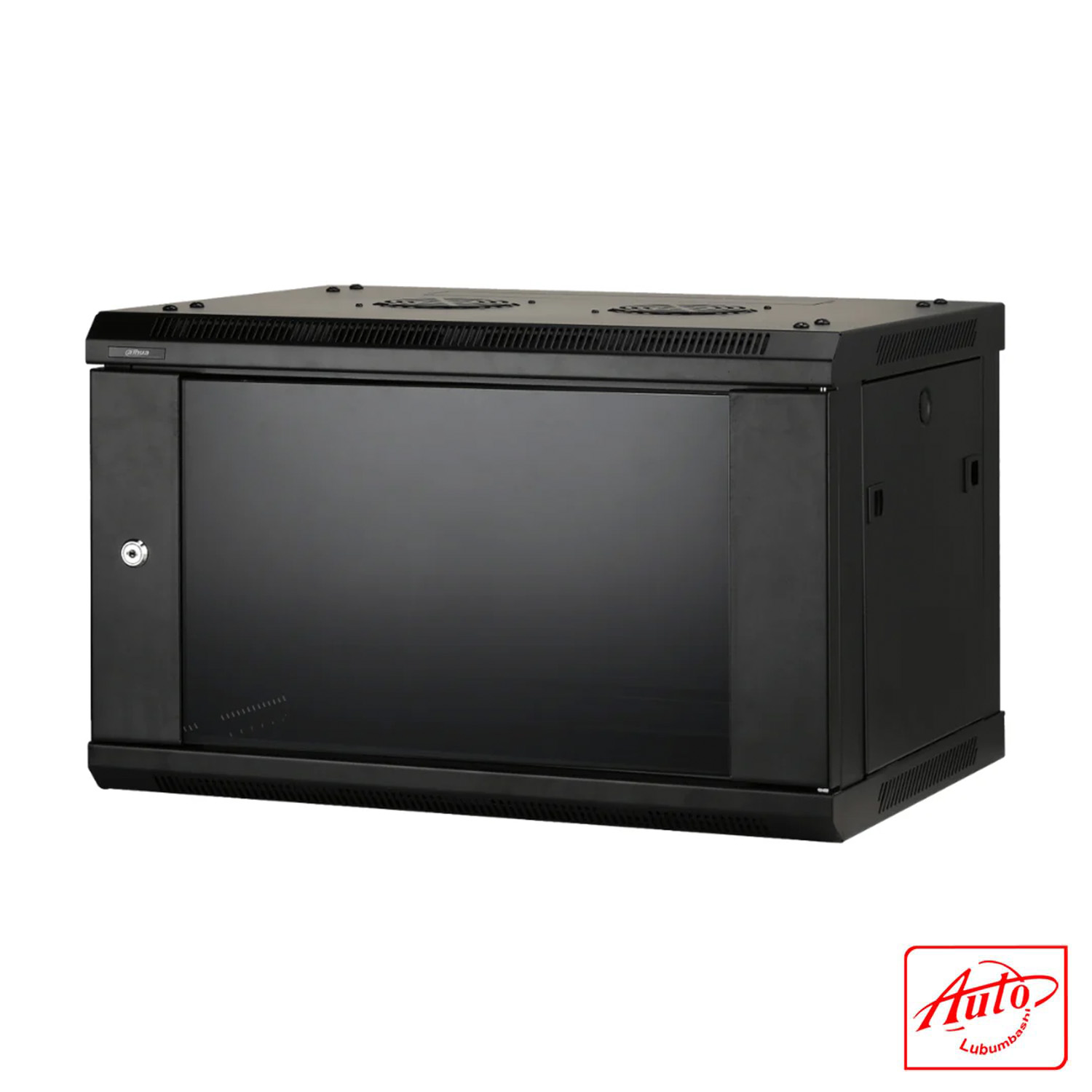

The DH-PFC200D-6U4D is a compact 19” 6U rack cabinet designed for secure and organized installation of networking and surveillance equipment. Made of SPCC steel, it combines durability with an elegant design.
It supports wall mount and plane mount installation, and features removable side panels for easy construction, installation, and maintenance. Cable entry points are provided on both the top cover and bottom panel, ensuring flexible wiring options.
With a load capacity of 40 kg (88.18 lb), the cabinet is suitable for professional environments. It operates reliably in a wide range of conditions (–40 °C to +60 °C, <90% RH) and comes with accessories including screws, keys, and a wrench for installation.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFC200D-6U4D |
| Material | SPCC steel |
| Dimensions (W × H × D) | 600 × 450 × 372 mm (23.62″ × 17.72″ × 14.57″) |
| Mount | Wall mount / Plane mount |
| Weight | 13 kg (28.66 lb) |
| Load Bearing | 40 kg (88.18 lb) |
| Color | Black |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | |
| Accessories Included | Rack cabinet ×1; Wrench ×1; Door keys ×2; M6 screws ×10 |
| Brand | Dahua |
