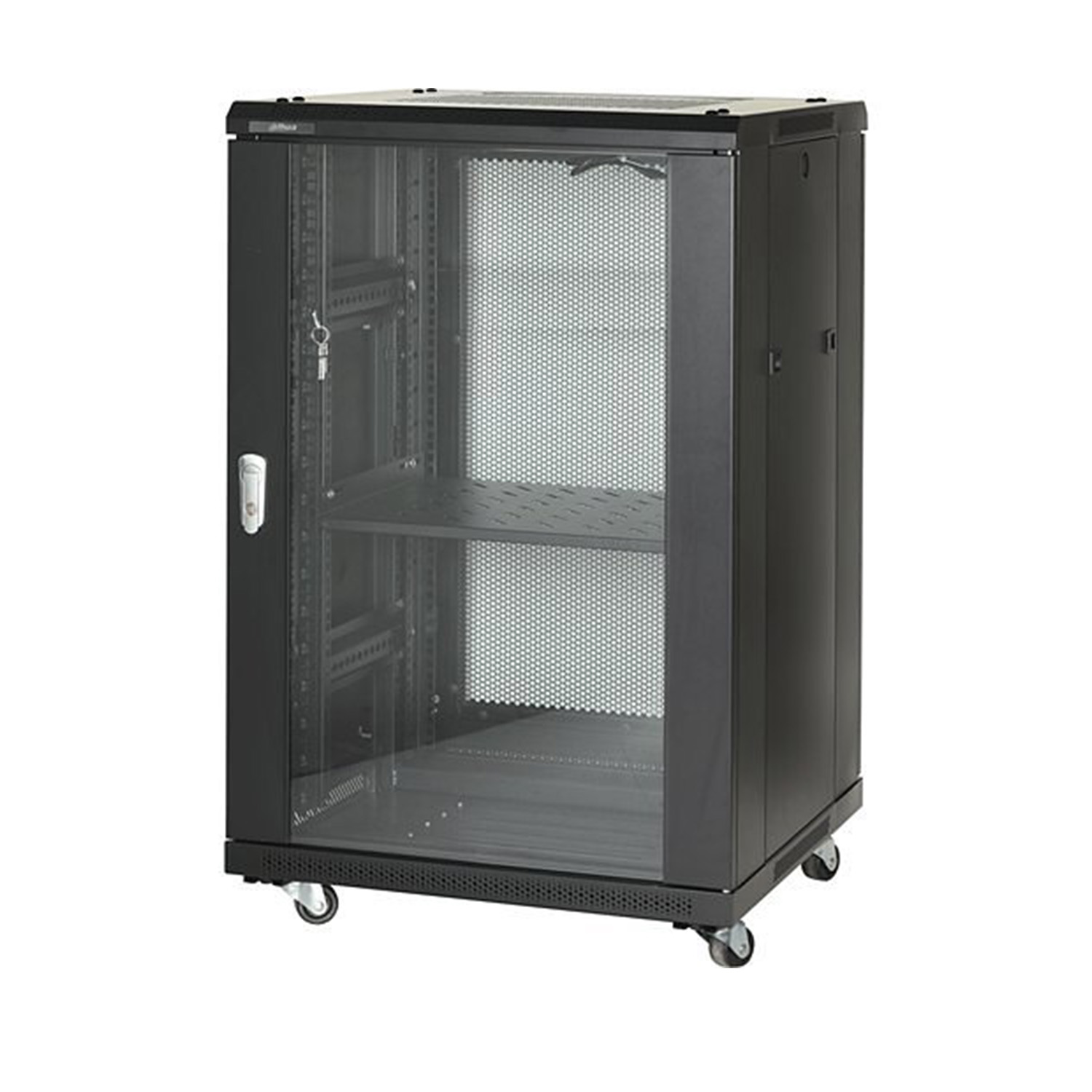

The DH-PFC200D-18U6D is a professional-grade 19” 18U rack cabinet designed for secure and organized installation of networking, IT, and surveillance equipment. Made of SPCC steel, it combines durability with a sleek, aesthetic design.
It supports plane mount installation and features openable panels on all four sides, making construction, installation, and maintenance more convenient. Cable entry points are provided on both the top cover and bottom panel, ensuring flexible wiring options.
With a load capacity of 300 kg (661.39 lb), the cabinet is suitable for heavy-duty professional setups. It operates reliably in a wide range of conditions (–40 °C to +60 °C, <90% RH) and is finished in black for a professional appearance.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFC200D-18U6D |
| Material | SPCC steel |
| Dimensions (W × D × H) | 600 × 600 × 990 mm (23.62″ × 23.62″ × 38.98″) |
| Mount | Plane mount |
| Weight | 39.5 kg (87.08 lb) |
| Load Bearing | 300 kg (661.39 lb) |
| Color | Black |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | |
| Brand | Dahua |
