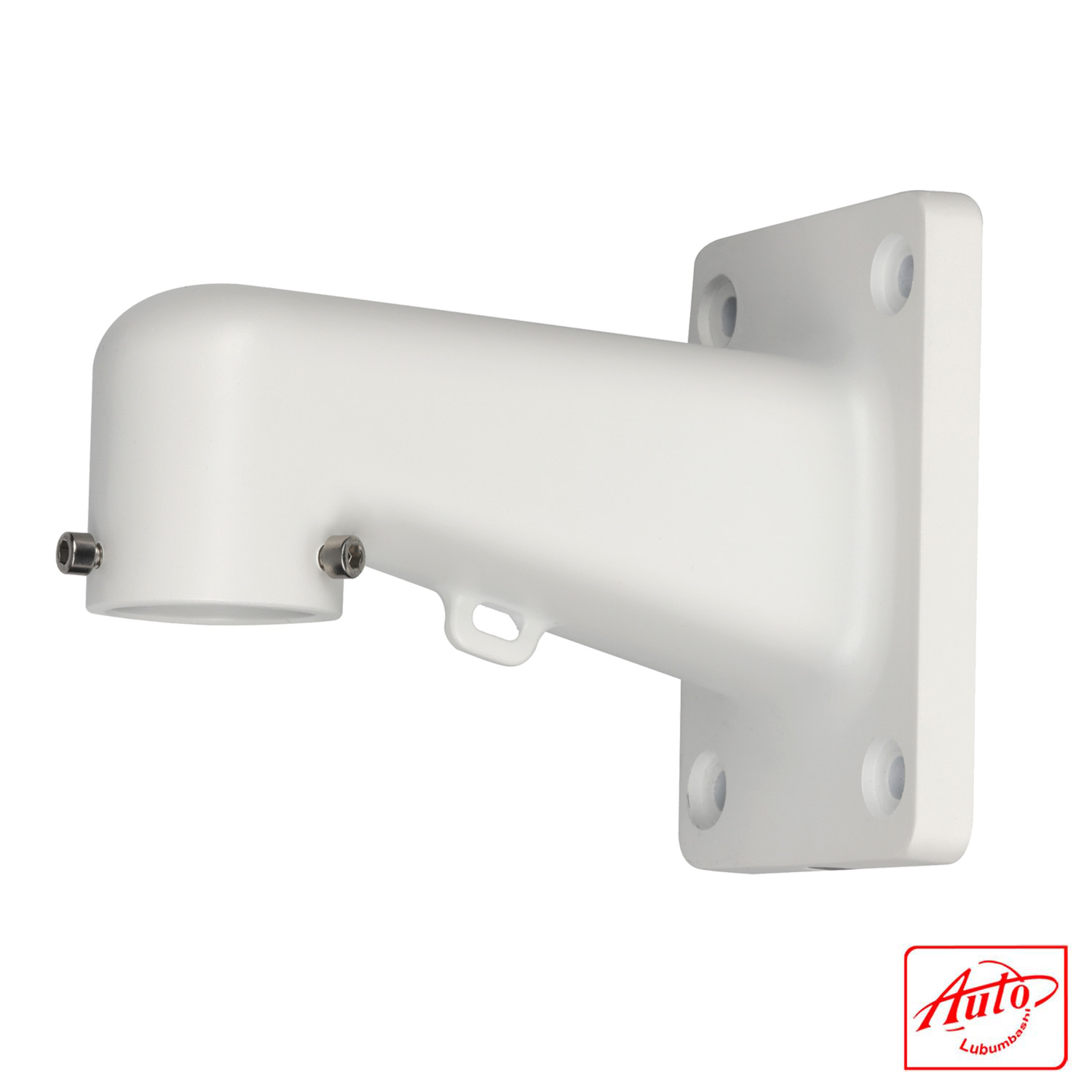

The DH-PFB305W is a professional wall mount bracket designed for Dahua cameras, offering a neat and integrated design that ensures both functionality and aesthetics. Made of aluminum, it provides strength, durability, and corrosion resistance for long-term use.
The bracket supports a load capacity of up to 5 kg (11.02 lb) and includes a safety rope hook for added security during installation. It is compatible with multiple Dahua accessories, including DH-PFA106, DH-PFA120, DH-PFA150, and DH-PFA151, making it versatile for different setups.
With a wide operating temperature range (–40 °C to +60 °C) and humidity tolerance up to 90% RH, the DH-PFB305W is ideal for outdoor surveillance environments. The package includes the bracket, screws, and a wrench for easy installation.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFB305W |
| Material | Aluminum |
| Dimensions (W × H × D) | 200 × 160 × 115 mm (7.87″ × 6.3″ × 4.53″) |
| Weight | 0.87 kg (1.92 lb) |
| Load Bearing | 5.0 kg (11.02 lb) |
| Color | White |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | |
| Applicable Models | DH-PFA106, DH-PFA120, DH-PFA150, DH-PFA151 |
| Package Contents | Wall mount bracket ×1; M6 screws ×3; Wrench ×1 |
| Brand | Dahua |
