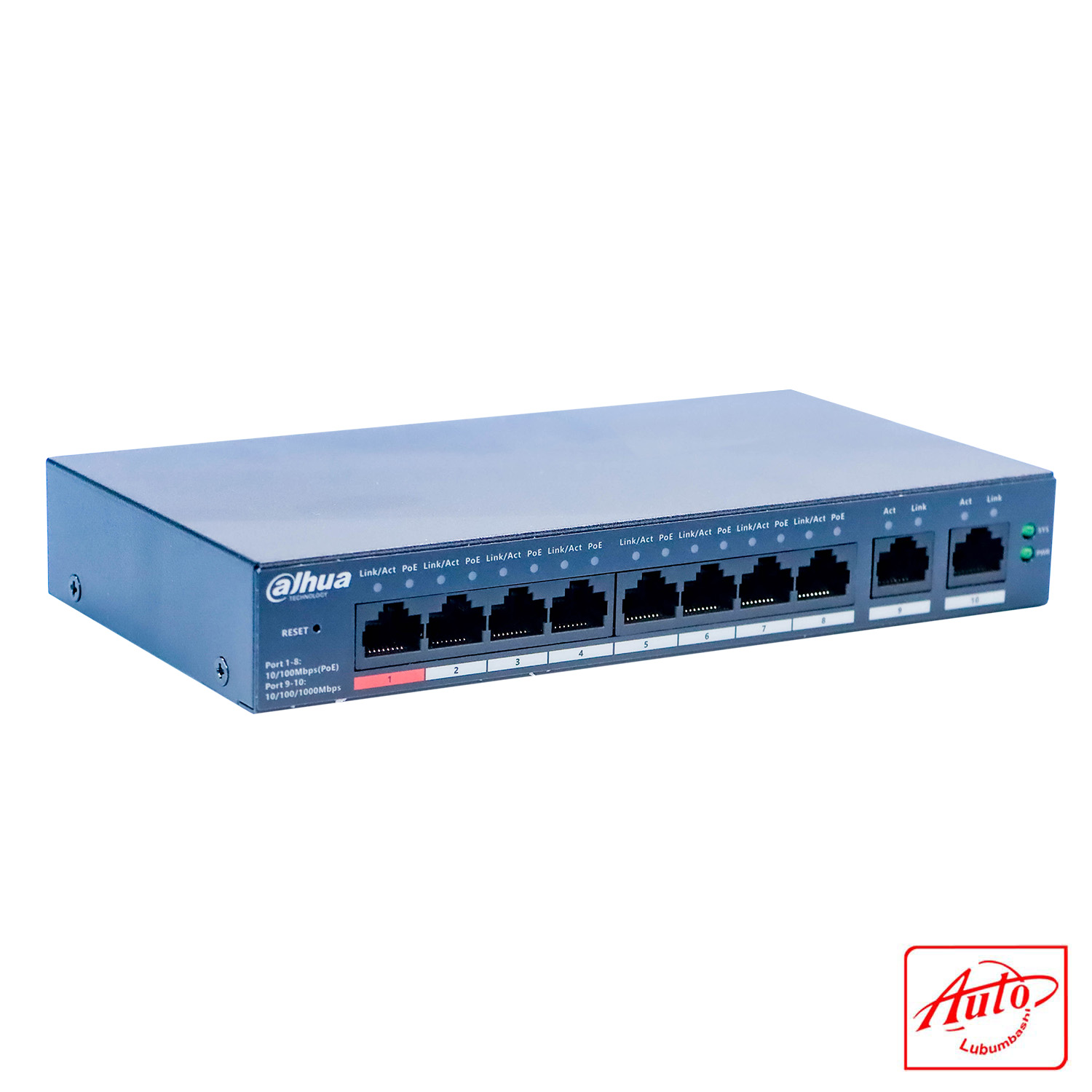

The CS4010-8GT-110 is a 10-port desktop Gigabit PoE switch designed for efficient and reliable network management. It features 8 × RJ45 PoE ports (10/100/1000 Mbps) and 2 × RJ45 uplink ports (10/100/1000 Mbps), ensuring high-speed connectivity for multiple devices.
Supporting IEEE802.3af/at/bt and Hi-PoE standards, the switch provides intelligent PoE power consumption management with a total budget of 110W. It is managed via the DoLynk cloud platform and web interface, offering easy configuration and monitoring.
The full-metal IP30 casing ensures durability and heat dissipation, while desktop and wall-mount installation options make it versatile for different environments. Additional features include STP/RSTP support, port-based VLAN, lightning and ESD protection, and jumbo frame support up to 15K bytes.
TECHNICAL DETAILS:
| Specification | Details |
| Model | CS4010-8GT-110 |
| Type | Cloud-managed Gigabit PoE switch |
| Ethernet Ports | 8 × RJ45 10/100/1000 Mbps PoE |
| Uplink Ports | 2 × RJ45 10/100/1000 Mbps |
| Standards Supported | IEEE802.3af; IEEE802.3at; IEEE802.3bt; Hi-PoE |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Size | 4 Mbit |
| MAC Address Table | 8K entries |
| Jumbo Frame Size | 15K bytes |
| PoE Budget | Port 1 ≤ 90W; Ports 2–8 ≤ 30W; Total ≤ 110W |
| Power Requirements | External 54 VDC, 2.22 A |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Operating Humidity | 5%–95% RH (non-condensing) |
| Lightning Protection | Common mode: 4kV; Differential mode: 2kV |
| Static Protection | Air discharge: 8kV; Contact discharge: 6kV |
| Housing Material | Sheet metal, IP30 protection |
| Dimensions | 190 × 106 × 30 mm |
| Weight | Net: 0.55 kg; Gross: 1.3 kg |
| Installation | Desktop or wall mount |
| Management | Web and DoLynk cloud platform |
| Certifications | CE; FCC |
