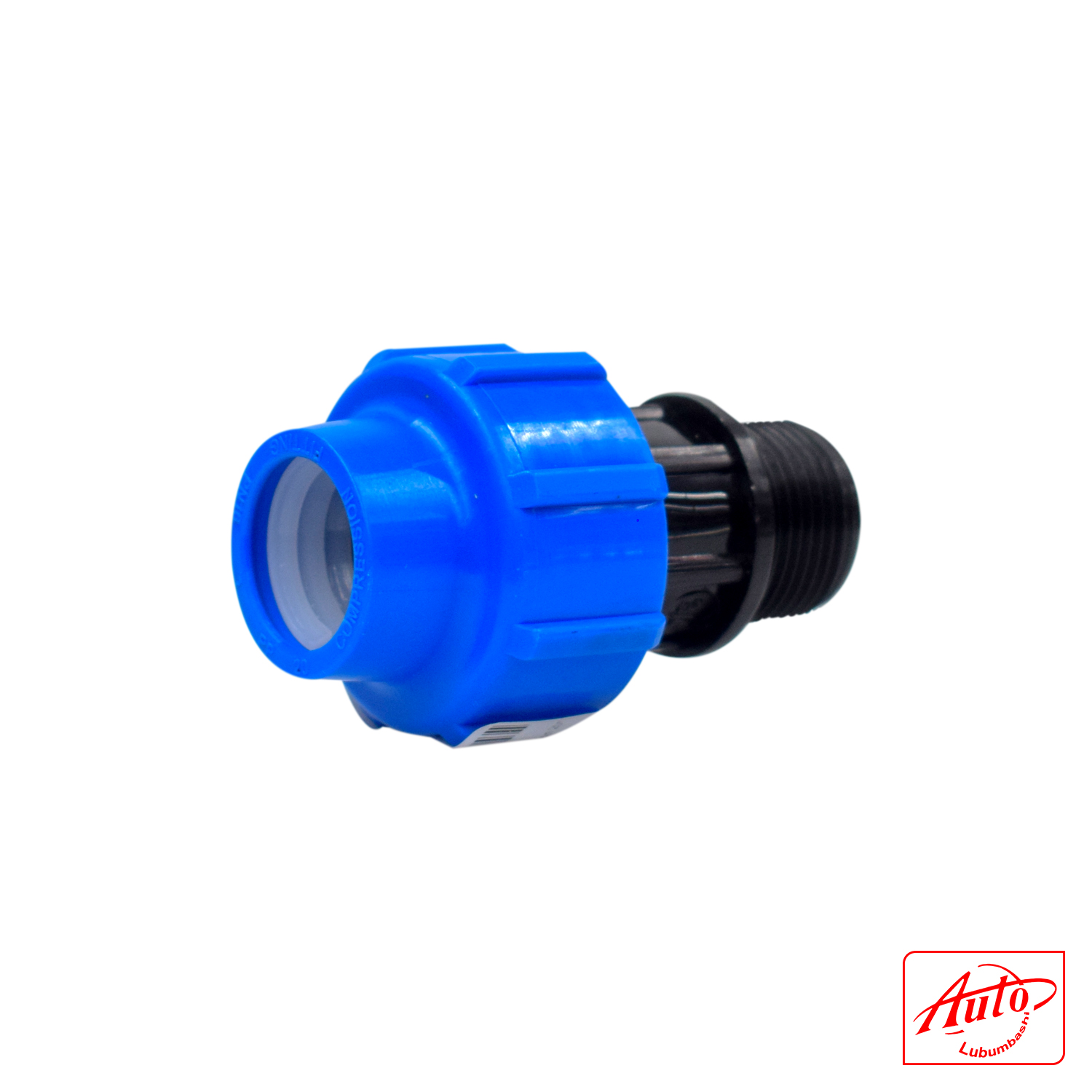

COMPRESSION FITTING MALE ADAPTOR 20*3/4 inch

SKU: AGR1051

$1.00

The PP Compression Fitting (20mm × ¾”) is a high-performance connector, designed for secure fluid conveyance in structural engineering, water supply systems, and agricultural irrigation. Made from PP-B polypropylene, it offers exceptional mechanical strength even at high temperatures, along with chemical resistance, electrical insulation, and water quality preservation. Featuring a simple installation process, this fitting ensures long-lasting durability and reliability.

Category:

The PP Compression Fitting (20mm × ¾”) is an essential component for fluid distribution systems, ensuring secure and leak-proof connections. Manufactured from high-quality PP-B polypropylene, it provides strong mechanical resistance, minimal fluid resistance, and excellent durability.



  • Designed for easy installation, this fitting includes:



  • Nut (PP-B polypropylene with UV stability and heat resistance)



  • Blocking bush (PP-B polypropylene for structural integrity)



  • Clinching ring (POM polyacetal resin for high mechanical strength)



  • O-ring gasket (NBR elastomeric acrylonitrile rubber for food-grade sealing)



With lightweight construction, chemical resistance, and electrical insulation, this fitting is ideal for water supply systems, agricultural irrigation, and structural engineering applications.



TECHNICAL DETAILS:



Feature Description
Size (20mm × ¾”)
Material PP-B Polypropylene
Nut PP-B with UV & heat resistance
Blocking Bush PP-B Polypropylene
Clinching Ring POM Polyacetal Resin
O-Ring Gasket NBR Elastomeric Acrylonitrile Rubber
Chemical Resistance Yes
Electrical Insulation Yes
Application Water Supply, Irrigation, Engineering
