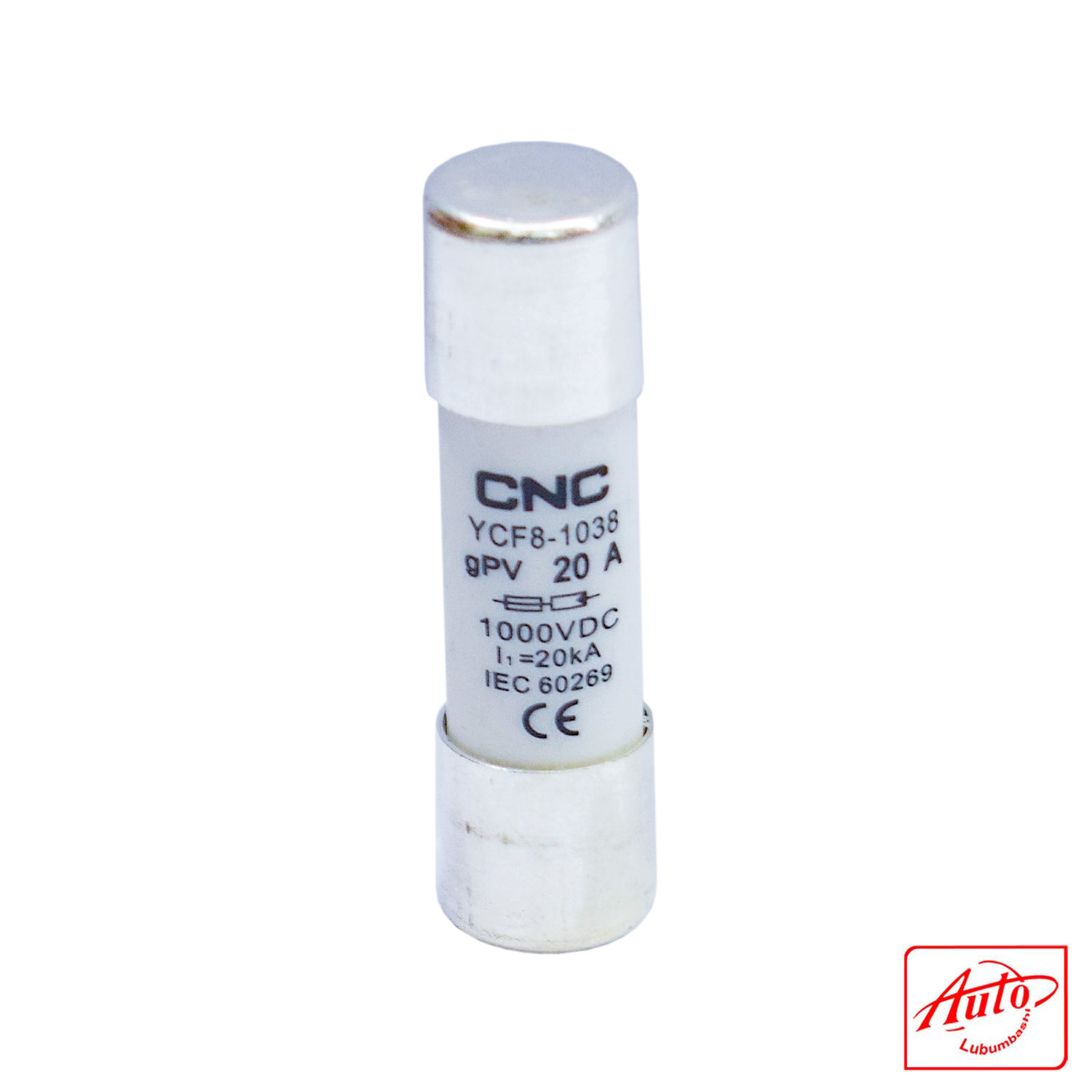

CNC YCF8-1038 gPV Fuse Link – 20A, 1000VDC, 10×38mm

SKU: ELC5000

$1.80

High-performance DC fuse link for photovoltaic systems, rated 20A, 1000VDC, with 20kA breaking capacity. Compliant with IEC 60269-6.

Category:

The CNC YCF8-1038 gPV fuse link is designed to protect solar photovoltaic (PV) systems from overload and short-circuit faults in DC circuits up to 1000V. Its compact 10×38mm cylindrical form makes it ideal for integration into PV combiner boxes and DC distribution panels.



Built with a high-strength porcelain body and filled with high-purity quartz sand for arc extinguishing, it ensures safe and reliable operation. The fuse complies with IEC 60269-6 and UL248-19, and offers a rated breaking capacity of 20kA, with fast response times and gPV operating characteristics.



TECHNICAL DETAILS:

Attribute Specification
Brand CNC Electric
Model YCF8-1038
Rated Current 20A
Rated Voltage 1000VDC
Fuse Size 10×38mm
Breaking Capacity 20kA
Operating Class gPV
Time Constant 1–3ms
Standards IEC 60269-6, UL248-19
Body Material High-strength porcelain
Arc Medium High-purity quartz sand
Application Solar PV systems, DC protection
