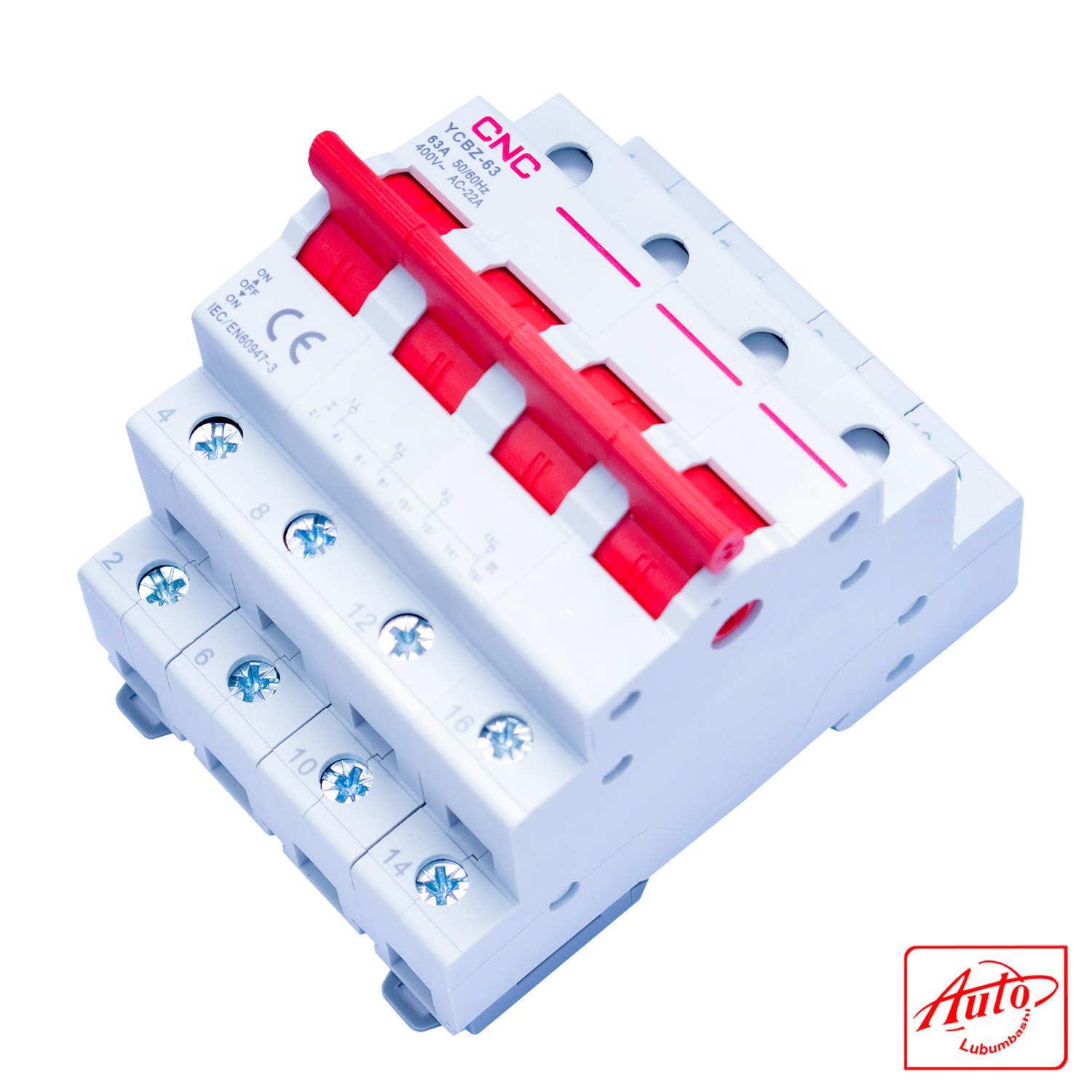

The CNC YCBZ-63 4P 63A is a heavy-duty manual changeover switch designed to transfer power between two sources—typically grid and generator—in three-phase systems. It functions as a switch disconnector, capable of switching on, loading, and breaking circuits under normal operating conditions.
Rated at 63A and 230/400V~, this 4-pole configuration ensures complete disconnection across all phases and neutral. It features a 1-0-2 contact form for clear source selection and mounts easily on a DIN rail EN60715 (35mm) using a fast clip system.
The YCBZ-63 series is available in 1P, 2P, 3P, and 4P versions and includes overload and short-circuit protection. It complies with IEC/EN60947-3, making it ideal for residential, commercial, and industrial environments requiring manual power transfer and system continuity.
TECHNICAL DETAILS:
| Attribute | Specification |
| Brand | CNC Electric |
| Series | YCBZ-63 |
| Model | YCBZ-63 4P 63A |
| Type | Manual Changeover Switch |
| Rated Voltage | 230/400V~ |
| Rated Current | 63A |
| Rated Frequency | 50/60Hz |
| Number of Poles | 4P (3-phase + neutral) |
| Contact Form | 1-0-2 |
| Electrical Life | 1500 cycles |
| Mechanical Life | 8500 cycles |
| Protection Degree | IP20 |
| Ambient Temperature | -5°C to +40°C |
| Terminal Size | Up to 10mm² |
| Mounting | DIN rail EN60715 (35mm), fast clip |
| Standards | IEC/EN60947-3 |
| Application | Power transfer, load switching |
