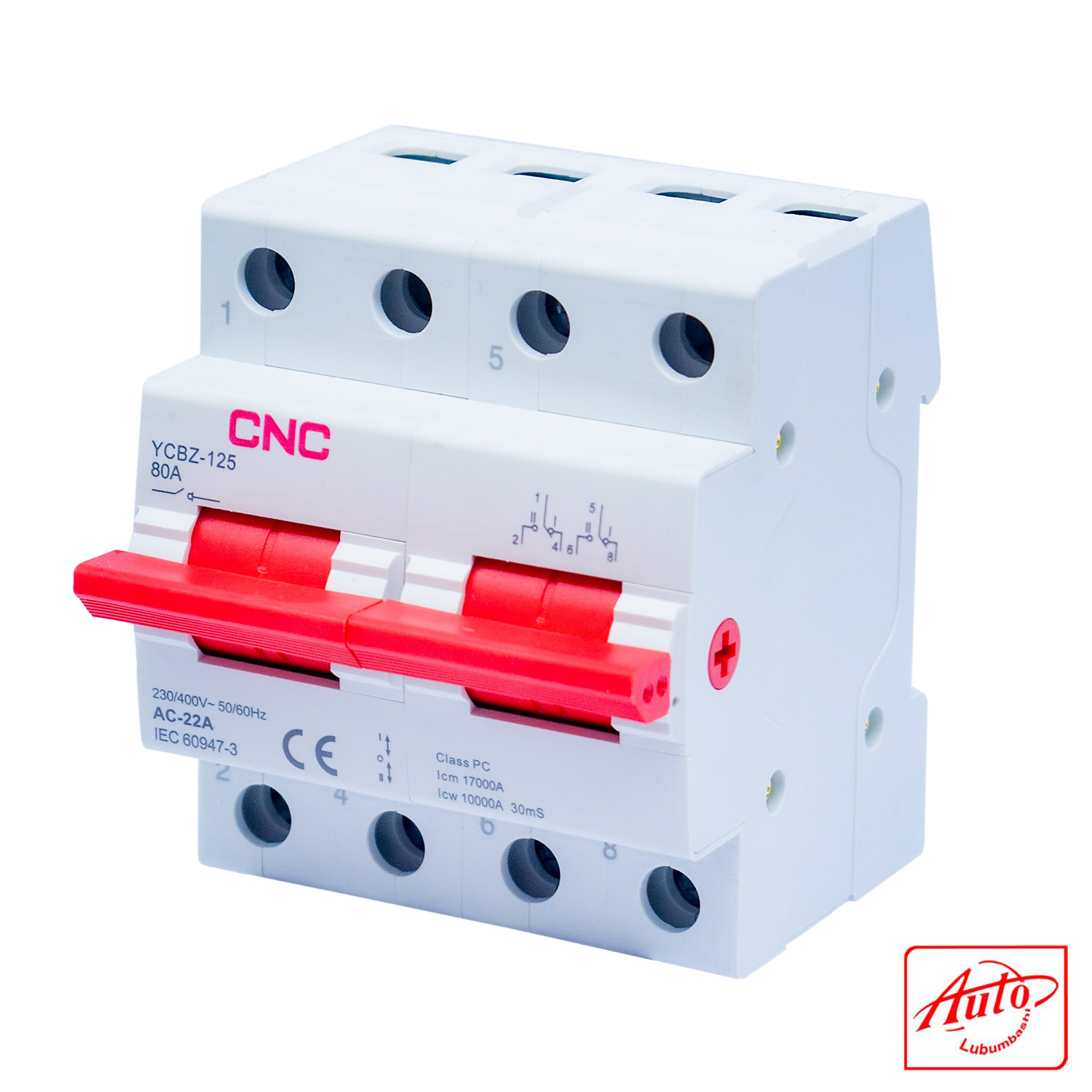

The CNC YCBZ-125 2P 80A is a robust manual changeover switch designed to transfer power between two sources—typically grid and generator—in single-phase or split-phase systems. It functions as a switch disconnector, capable of switching on, loading, and breaking circuits under normal operating conditions.
Rated at 80A and 230/400V~, this 2-pole configuration ensures safe disconnection of both live conductors. It features a 1-0-2 contact form for clear source selection and mounts securely on a DIN rail EN60715 (35mm) using a fast clip system.
The YCBZ-125 series is engineered for higher current capacities and includes overload and short-circuit protection. It complies with IEC/EN60947-3, making it ideal for residential, commercial, and industrial environments requiring manual power transfer and system continuity.
TECHNICAL DETAILS:
| Attribute | Specification |
| Brand | CNC Electric |
| Series | YCBZ-125 |
| Model | YCBZ-125 2P 80A |
| Type | Manual Changeover Switch |
| Rated Voltage | 230/400V~ |
| Rated Current | 80A |
| Rated Frequency | 50/60Hz |
| Number of Poles | 2P (also available in 1P, 3P, 4P) |
| Contact Form | 1-0-2 |
| Electrical Life | 1500 cycles |
| Mechanical Life | 8500 cycles |
| Protection Degree | IP20 |
| Ambient Temperature | -5°C to +40°C |
| Terminal Size | Up to 25mm² |
| Mounting | DIN rail EN60715 (35mm), fast clip |
| Standards | IEC/EN60947-3 |
| Application | Power transfer, load switching |
