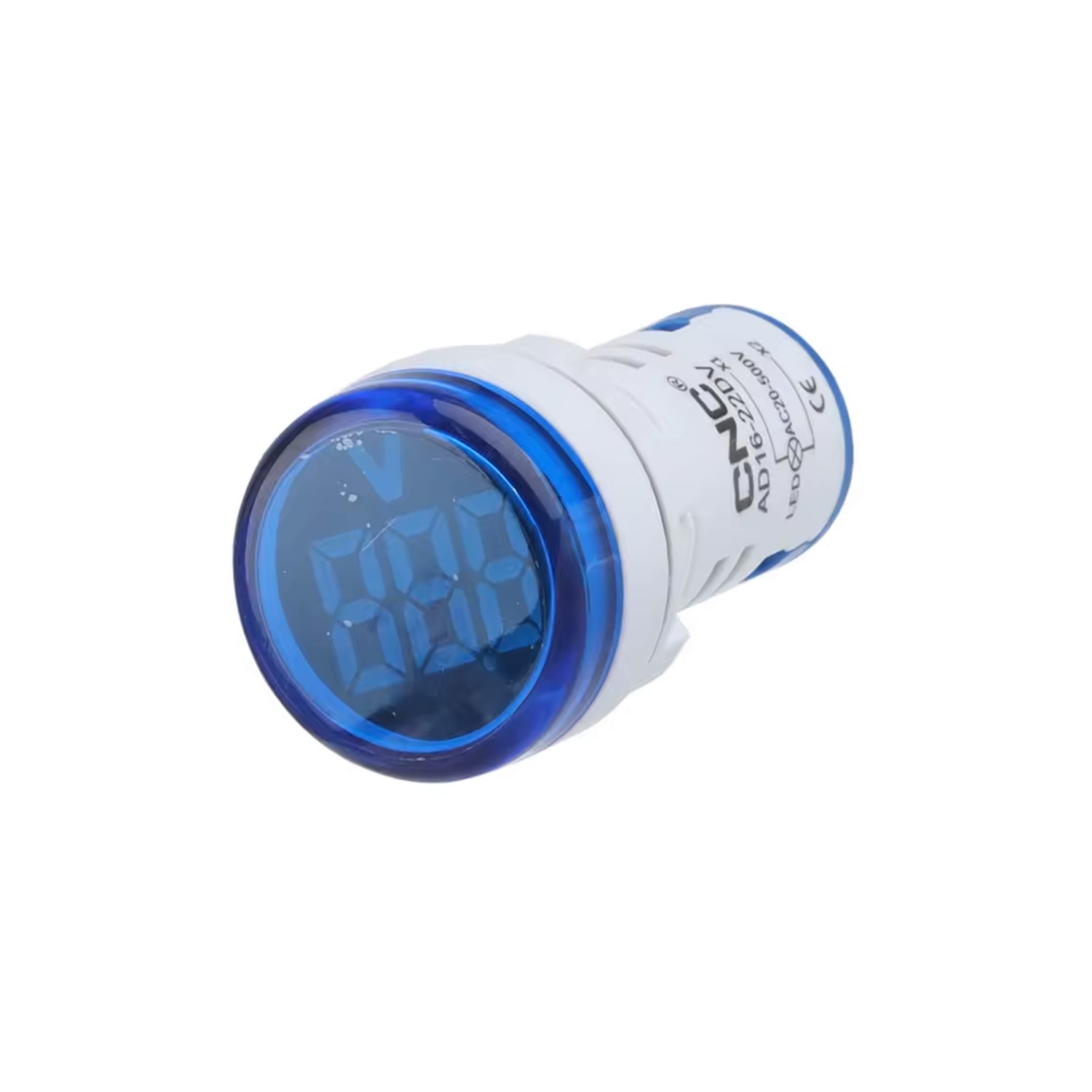

The AD16-22DV indicator voltmeter is a 22mm panel-mounted device that provides clear and reliable voltage readings. Equipped with a high-brightness blue LED display, it ensures excellent visibility and long service life.
It measures AC voltage from 20V to 500V, making it suitable for monitoring mains supply voltage in various applications. Its compact dimensions (Ø30 mm front, Ø22 mm body, 51 mm depth, 15 mm front thickness) allow easy integration into standard electrical panels.
This voltmeter is widely used in distribution boards, industrial cabinets, generator sets, and industrial machinery, providing quick and accurate visual control of AC voltage.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | CNC Electric |
| Model | AD16-22DV |
| Product Type | Indicator Voltmeter |
| Function | Measures and displays AC voltage |
| Display Type | Digital LED (blue) |
| Voltage Range | AC 20–500 V |
| Mounting Diameter | Ø 22 mm |
| Front Diameter | Ø 30 mm |
| Body Diameter | Ø 22 mm |
| Total Depth | 51 mm |
| Front Thickness | 15 mm |
| Compatibility | Standard Ø22 mm electrical panels |
| Typical Applications | Distribution boards, industrial cabinets, generator sets, industrial machinery |
