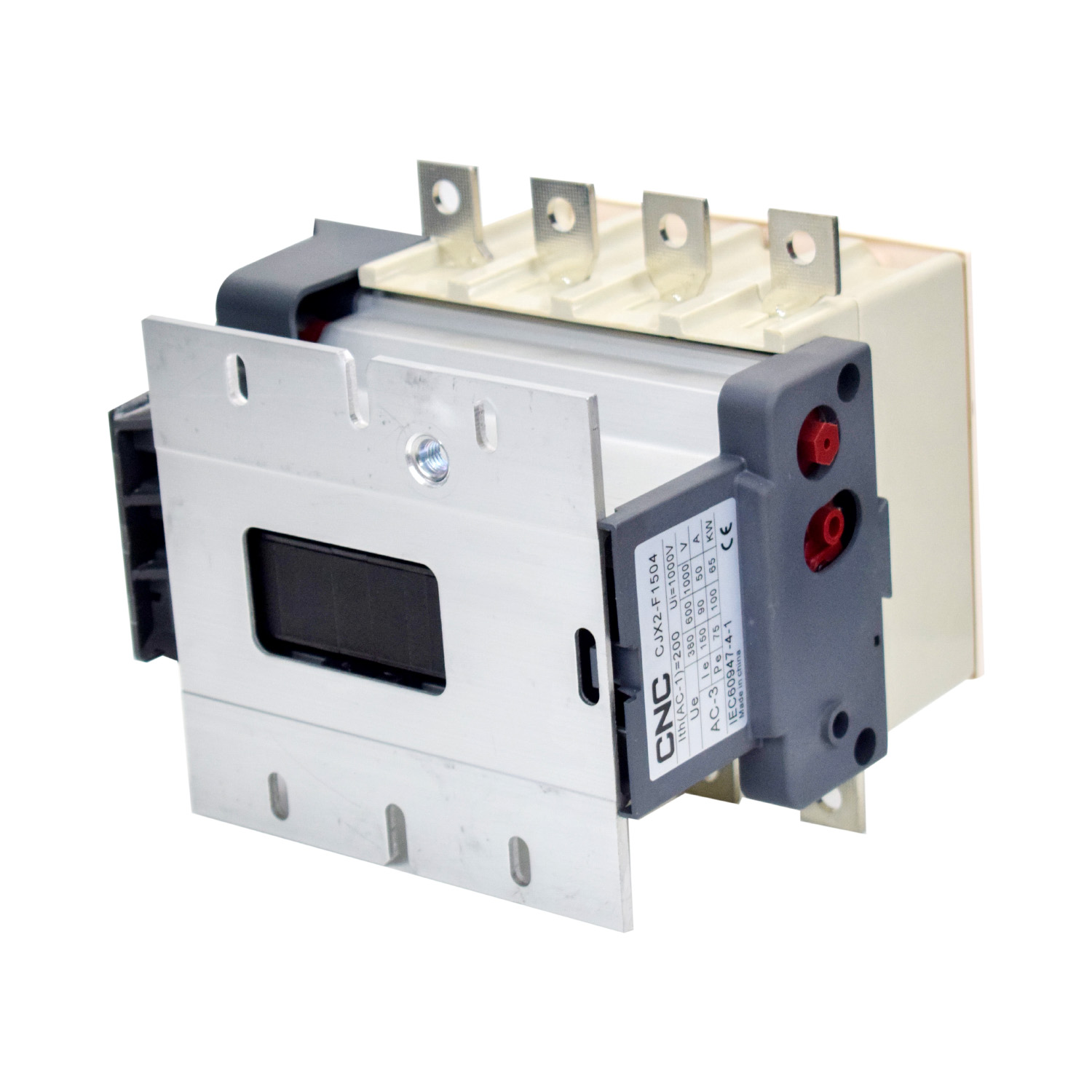

The CJX2-F1504 AC Contactor from CNC Electric is part of the CJX2-F series, engineered for frequent switching of AC motors and power circuits. With a rated current of 150A and operating voltage of 415V at 50Hz, this model features four main poles, making it suitable for applications requiring neutral line switching or three-phase + neutral control.
It complies with IEC 60947-4-1 standards, ensuring safe and reliable operation in industrial environments. The contactor is built with silver alloy contact points, supports electromagnetic operation, and can be paired with thermal overload relays to form complete motor starters.
Mounting options include DIN rail or panel installation, and the unit operates effectively in ambient temperatures from –5°C to +40°C. It’s ideal for use in automation systems, HVAC, pumps, compressors, and power distribution panels.
TECHNICAL DETAILS:
| Specification | Value |
| Model | CJX2-F1504 |
| Brand | CNC Electric |
| Type | AC Contactor |
| Rated Current (AC-3) | 150A |
| Rated Voltage | 415V AC |
| Frequency | 50Hz |
| Number of Poles | 4P (Four Pole) |
| Control Voltage | Varies (24V / 110V / 220V AC/DC) |
| Contact Material | Silver alloy |
| Standards | IEC 60947-4-1 / GB14048.4 |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | –5°C to +40°C |
| Application | Motor control, industrial switching |
| Certifications | CE / RoHS compliant |
