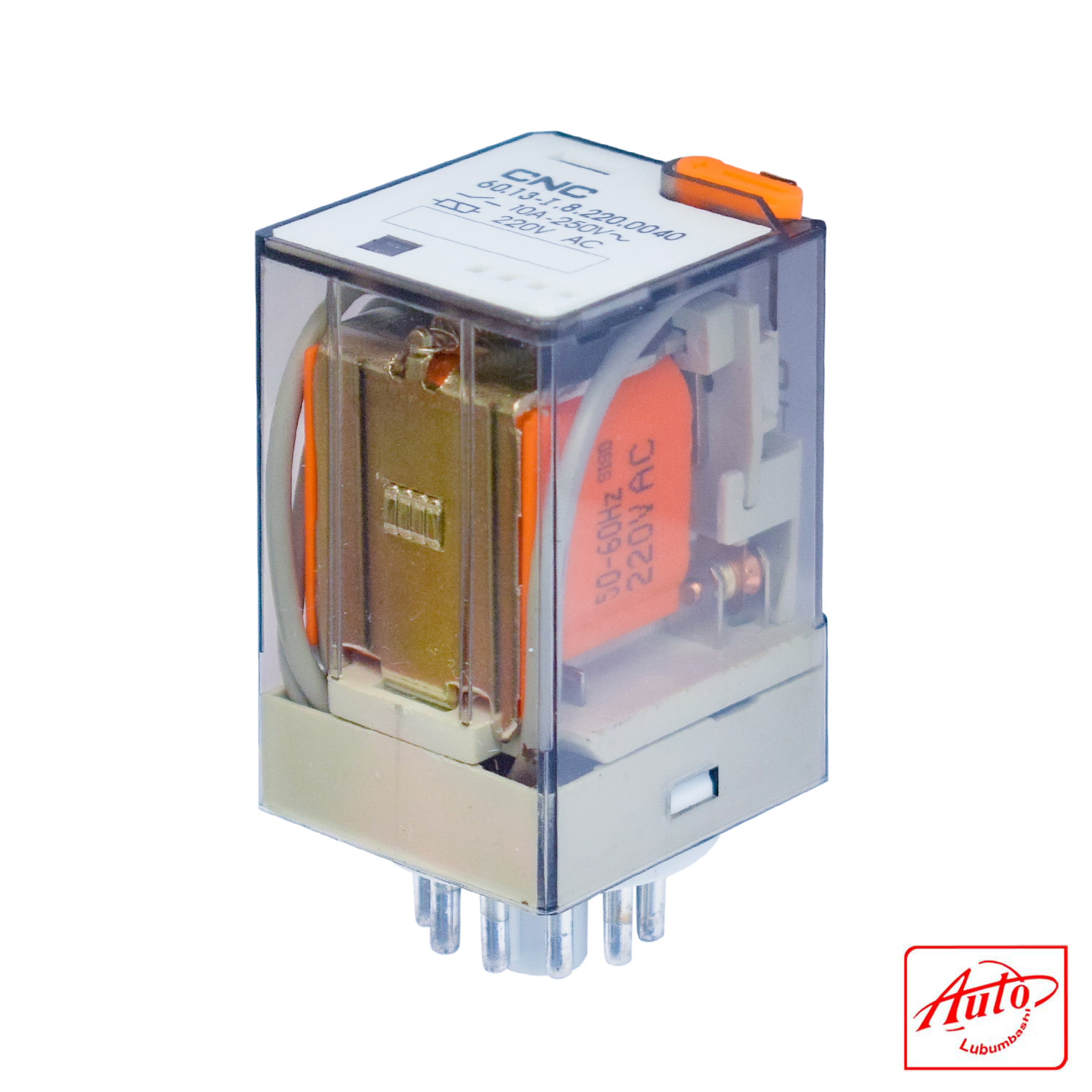

The CNC 60.13-I relay is a high-performance general-purpose power relay designed for industrial automation, control panels, and machinery. It features a 220V AC coil and 3PDT (Triple Pole Double Throw) contact configuration, capable of switching loads up to 10A per contact.
Its 11-pin plug-in design allows for quick installation and replacement using standard relay sockets. The relay includes a mechanical status indicator and a manual test button, enabling easy diagnostics and maintenance. These features enhance operational safety and system reliability.
This relay is part of CNC Electric’s modular relay series and is compatible with DIN rail-mounted sockets. It is suitable for use in industrial control systems, lighting circuits, motor starters, and signal switching.
TECHNICAL DETAILS:
| Specification | Value |
| Model | 60.13-I |
| Manufacturer | CNC Electric |
| Coil Voltage | 220V AC |
| Contact Configuration | 3PDT (3 CO contacts) |
| Switching Current | 10A per contact |
| Mounting Type | Plug-in (11-pin base) |
| Features | Mechanical indicator, test button |
| Contact Resistance | ≤50mΩ (1A 6VDC) |
| Insulation Resistance | ≥500MΩ (500VDC) |
| Dielectric Strength | BCC: 1000VAC 1min / BOC: 1500VAC 1min |
| Operating Time | 30ms (pull-in), 20ms (release) |
| Electrical Life | ≥100,000 operations |
| Mechanical Life | ≥1,000,000 operations |
| Applications | Control panels, automation, lighting, signal switching |
