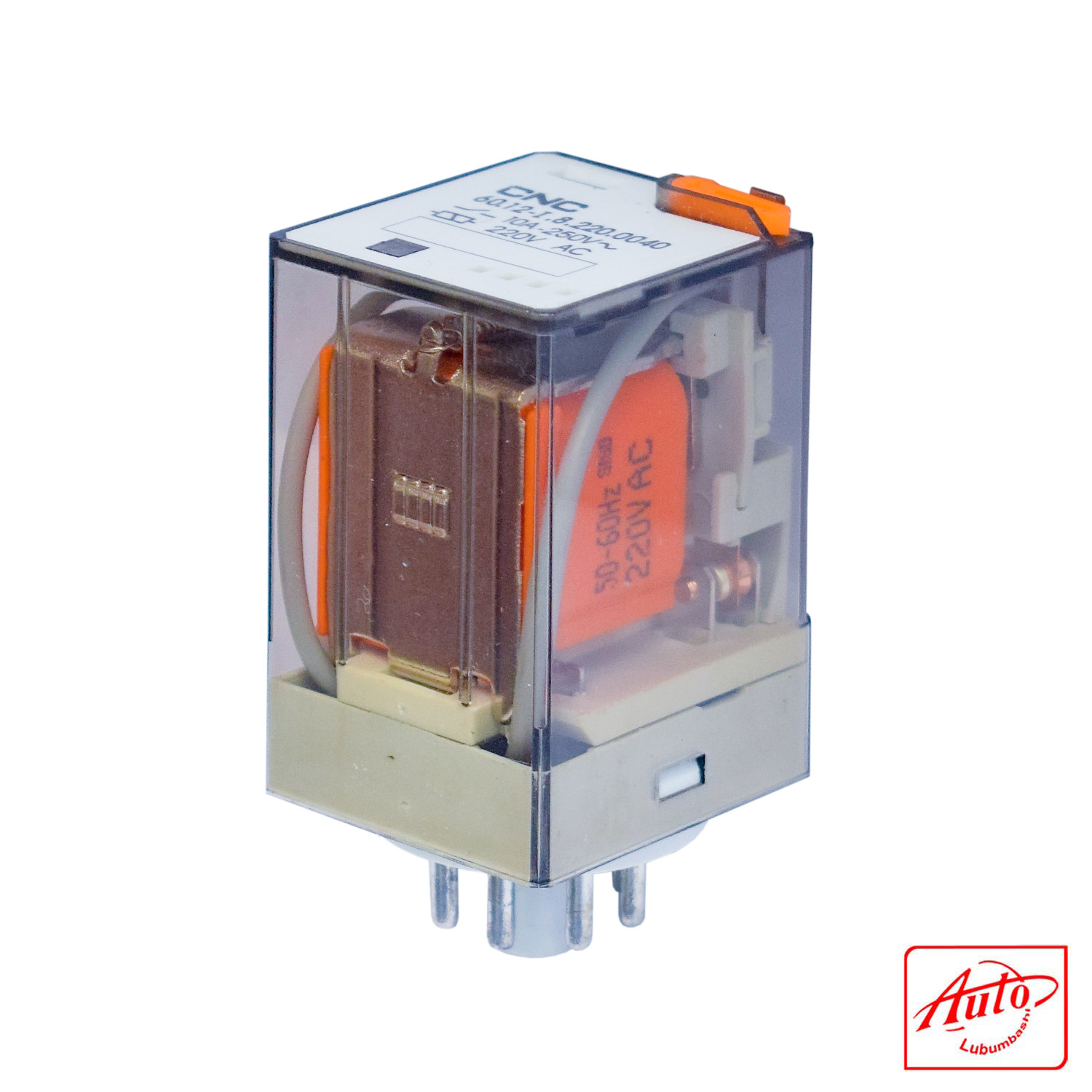

The CNC 60.12-I relay is a robust and versatile general-purpose power relay designed for industrial and commercial applications. With a 220V AC coil and DPDT (Double Pole, Double Throw) contact configuration, it supports switching loads up to 10A, making it suitable for use in control panels, hoists, cranes, and other automation systems.
Its 8-pin plug-in format allows for quick installation and replacement using standard relay sockets. The relay includes a mechanical indicator to show contact status and a manual test button for functional checks and maintenance. These features enhance operational safety and simplify diagnostics.
The CNC 60.12-I relay is compatible with DIN rail-mounted sockets and meets industrial standards for reliability and performance. It is part of CNC Electric’s lineup of modular control components, known for their durability and ease of integration.
TECHNICAL DETAILS:
| Specification | Value |
| Model | 60.12-I |
| Manufacturer | CNC Electric |
| Coil Voltage | 220V AC |
| Contact Configuration | DPDT (2 CO contacts) |
| Switching Current | 10A |
| Mounting Type | Plug-in (8-pin base) |
| Features | Mechanical indicator, test button |
| Contact Resistance | ≤50mΩ (1A 6VDC) |
| Insulation Resistance | ≥500MΩ (500VDC) |
| Dielectric Strength | BCC: 1000VAC 1min / BOC: 1500VAC 1min |
| Operating Time | 30ms (pull-in), 20ms (release) |
| Electrical Life | ≥100,000 operations |
| Mechanical Life | ≥1,000,000 operations |
| Applications | Control panels, hoists, cranes, industrial automation |
