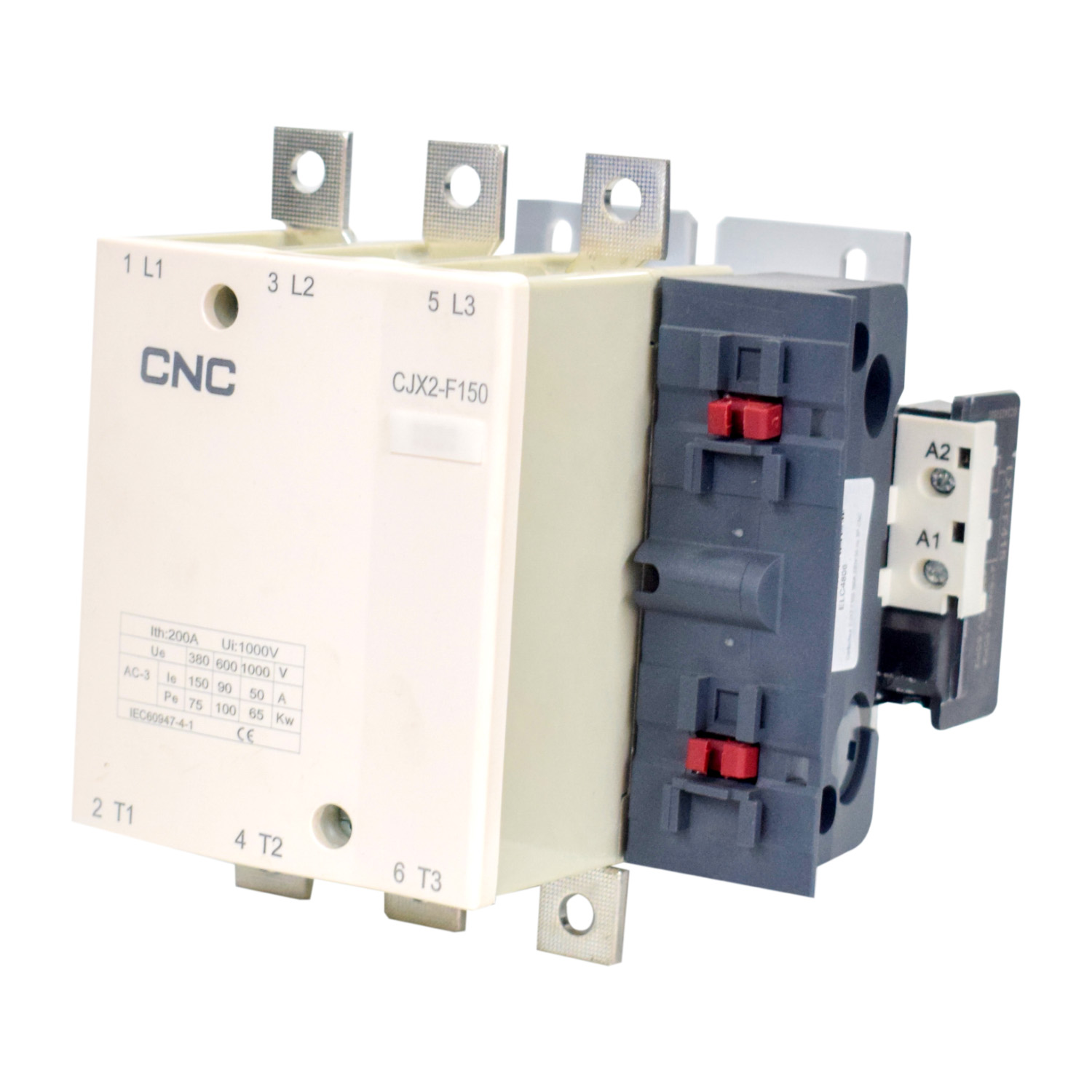

The CJX2-F150 AC Contactor is part of the CJX2-F series designed for frequent switching of AC motors and power circuits. With a rated current of 150A and operating voltage of 415V at 50Hz, it is ideal for industrial automation, HVAC systems, pumps, compressors, and power distribution panels.
It features three main poles (3P) and optional auxiliary contacts for control circuits. The contactor is built with silver alloy contact points for enhanced conductivity and durability. It complies with IEC 60947-4-1 standards, ensuring safety and long service life.
The CJX2-F150 can be mounted on DIN rails or panels, and is often paired with thermal overload relays to form complete motor starters. Its electromagnetic operation ensures fast and reliable switching under heavy loads.
TECHNICAL DETAILS:
| Specification | Value |
| Model | CJX2-F150 |
| Type | AC Contactor |
| Rated Current (AC-3) | 150A |
| Rated Voltage | 415V AC |
| Frequency | 50Hz |
| Number of Poles | 3P (Three Pole) |
| Control Voltage | Varies (24V / 110V / 220V AC/DC) |
| Contact Material | Silver alloy |
| Standards | IEC 60947-4-1 / GB14048.4 |
| Mounting Type | DIN rail or panel mount |
| Auxiliary Contacts | Optional NO/NC |
| Application | Motor control, industrial switching |
| Certifications | CE / RoHS compliant |
