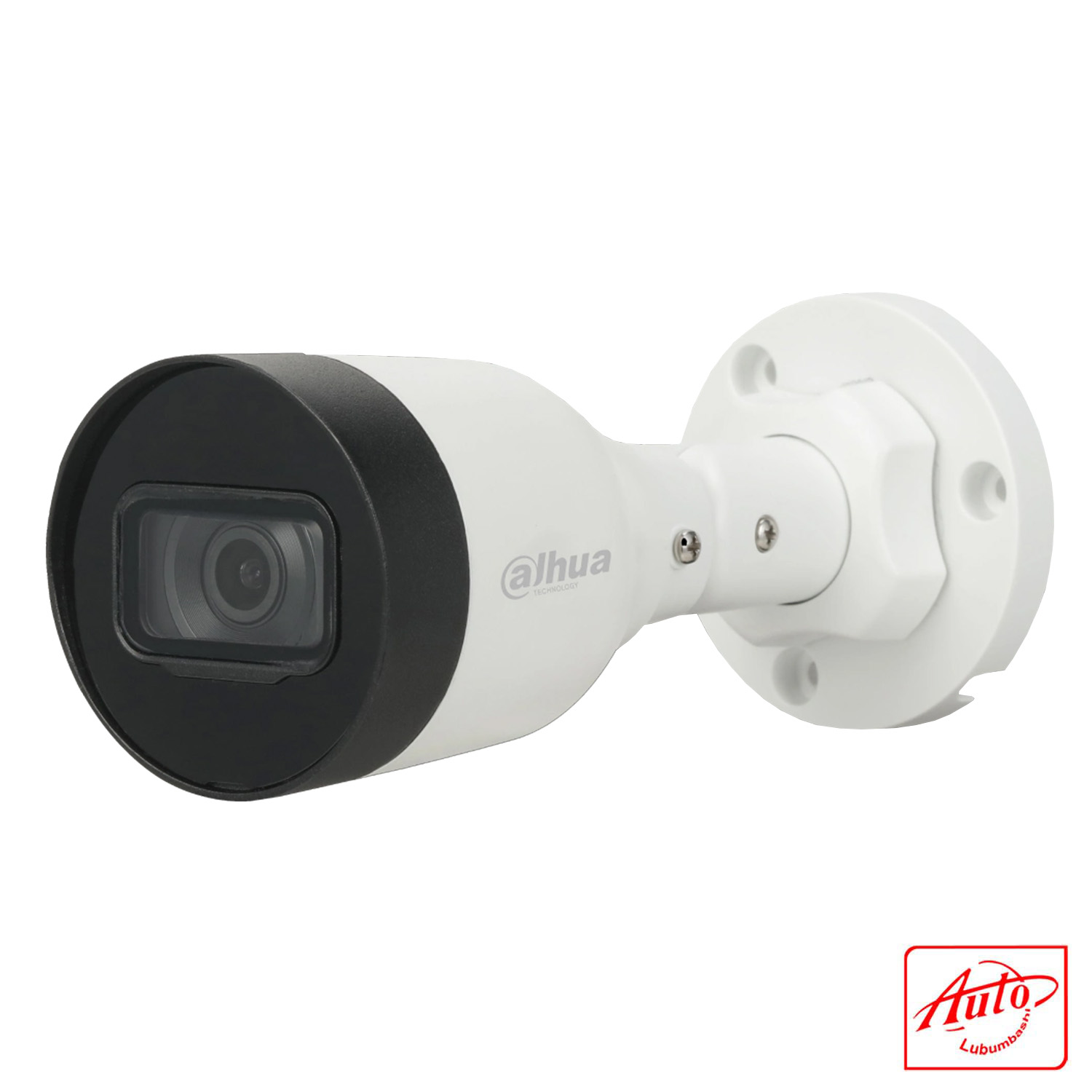

This 4K Ultra HD fixed-focal network camera delivers exceptional clarity with a 1/2.7” CMOS sensor and 3840 × 2160 resolution. It supports Smart H.265+/H.264+ compression, reducing bandwidth and storage costs while maintaining high-quality video.
The integrated IR LED illuminator provides visibility up to 30 meters, ensuring reliable imaging in complete darkness. Advanced features include DWDR, 3D noise reduction, BLC, HLC, ROI, motion detection, audio detection, and privacy masking.
With built-in microphone, PoE/DC12V support, and IP67-rated housing, the camera is designed for robust outdoor and indoor surveillance. Cybersecurity protections such as video encryption, trusted boot, and secure upgrade ensure safe deployment in sensitive environments.
TECHNICAL DETAILS:
| Specification | Value |
| Image Sensor | 1/2.7” CMOS, 8MP |
| Max Resolution | 3840 × 2160 (4K Ultra HD) |
| RAM/ROM | 256MB / 16MB |
| Shutter Speed | Auto/Manual, 1/3–1/100,000s |
| Min. Illumination | 0.04 lux (Color); 0.004 lux (B/W); 0 lux (IR on) |
| S/N Ratio | >56 dB |
| Illumination | 1 IR LED, up to 30m |
| Lens Options | 2.8 mm (105° HFOV), 3.6 mm (87° HFOV) |
| DORI (2.8 mm) | Detect: 74.7m; Observe: 29.9m; Recognize: 14.9m; Identify: 7.5m |
| DORI (3.6 mm) | Detect: 106.7m; Observe: 42.7m; Recognize: 21.3m; Identify: 10.7m |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | 4K @15 fps; 2688 × 1520 @25/30 fps |
| Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Functions | DWDR, 3D NR, BLC, HLC, ROI, Smart Illumination, Flip, Mirror, Digital Zoom (16x) |
| Audio | Built-in microphone; G.711a, G.711Mu, G.726, PCM |
| Detection | Motion, video tampering, IP conflict, illegal access, audio detection, security exception |
| Network Protocols | IPv4/IPv6, HTTP, TCP/UDP, RTSP, FTP, DHCP, DNS, DDNS, NTP, ONVIF (S/T) |
| User Access | Max 6 users (48 Mbps total bandwidth) |
| Storage | FTP |
| Certifications | CE-LVD, CE-EMC, FCC |
| Power Supply | DC12V / PoE (802.3af) |
| Power Consumption | Max 4.4W (DC); 5.2W (PoE) |
| Operating Temp. | –40 °C to +60 °C |
| Ingress Protection | IP67 |
| Dimensions | 162.1 mm × Φ70.1 mm (6.38″ × Φ2.76″) |
| Weight | Net: 0.32 kg; Gross: 0.45 kg |
