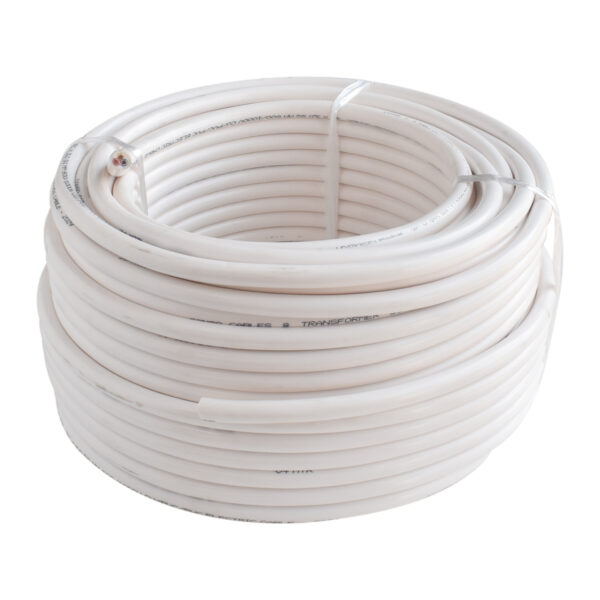

This 4.0mm² 3-core flexible cable is engineered for high-current electrical installations in residential, commercial, and light industrial environments. It features three copper conductors—brown (live), blue (neutral), and green/yellow (earth)—each insulated with PVC, and enclosed in a white PVC sheath for enhanced mechanical protection and flexibility.
Ideal for connecting water heaters, air conditioning units, industrial tools, and fixed power circuits, the cable complies with BS EN 50525-2-11 and H05VV-F standards. The 4.0mm² cross-section supports higher amperage, making it suitable for demanding loads and longer cable runs. Supplied in a 50-meter roll, it’s easy to handle and install.
TECHNICAL DETAILS:
| Parameter | Value |
| Cable Type | 3183Y / H05VV-F |
| Number of Cores | 3 |
| Core Colors | Brown, Blue, Green/Yellow |
| Conductor Material | Copper |
| Cross-Section Area | 4.0mm² |
| Insulation Material | PVC |
| Sheath Color | White |
| Rated Voltage | 300/500V |
| Temperature Range | –5°C to +70°C |
| Roll Length | 50 meters |
| Standards | BS EN 50525-2-11, H05VV-F |
| Typical Applications | Water heaters, AC units, industrial tools, fixed wiring |
