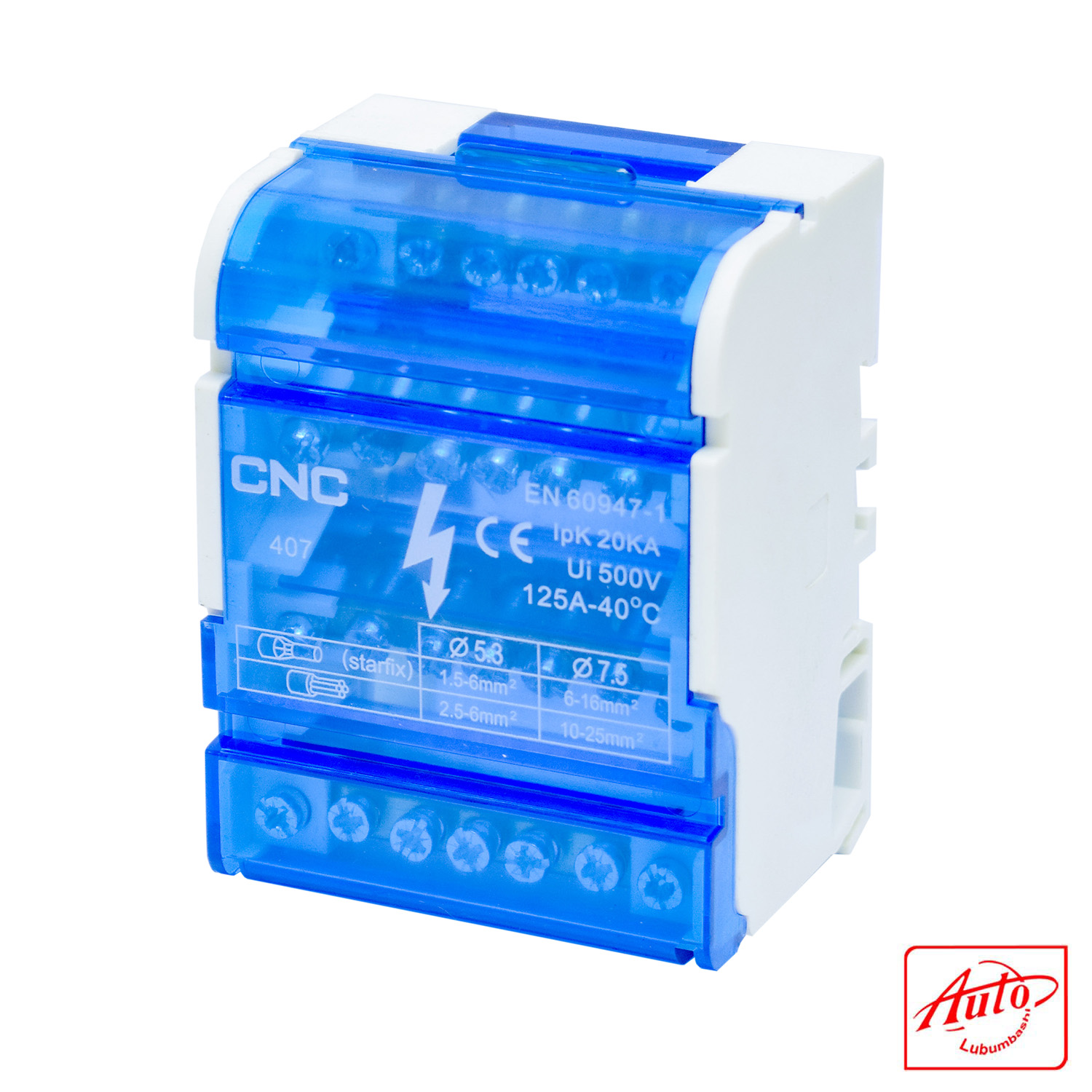

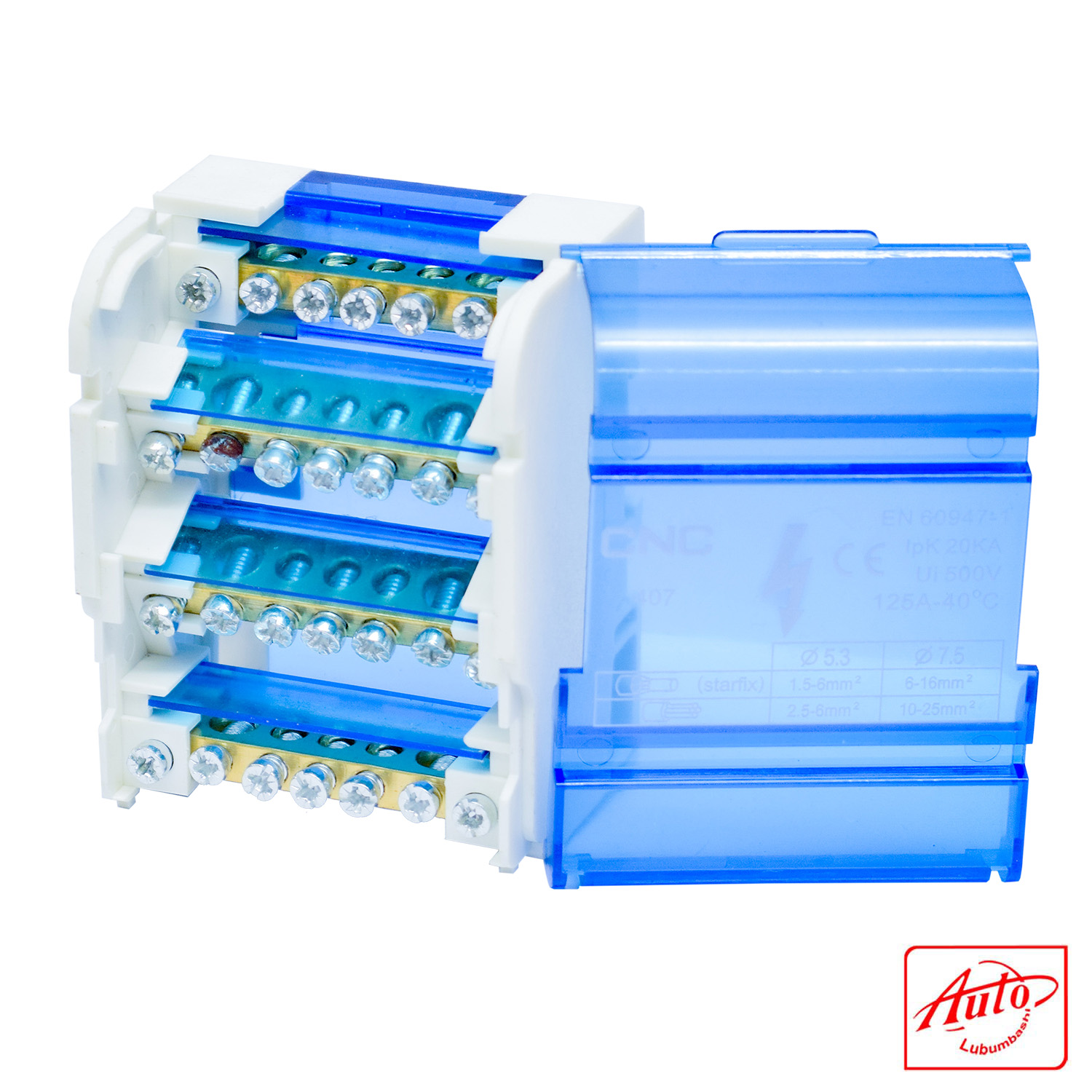

The Liujaos Terminal Block Junction Box is designed for safe and efficient electrical distribution in industrial settings. Built for DIN rail mounting, it features a 2-level terminal layout that optimizes wiring space and simplifies installation. The housing is made of flame-retardant nylon, and the conductive elements are brass and metal, ensuring durability and high conductivity.
With a current rating of 125 amps and voltage capacity up to 500 volts, it supports wire sections up to 25mm². The terminal hole configuration ATY 4 × 7 allows secure screw-type connections for multi-circuit or high-density wiring. Its compact dimensions (6.5 cm width × 12 cm height) make it ideal for control panels, machinery, and distribution boxes in single-phase systems.
TECHNICAL DETAILS:
| Parameter | Specification |
| Current Rating | 125 Amps |
| Voltage Rating | 500 Volts |
| Connector Type | Screw |
| Mounting Type | DIN Rail |
| Terminal Levels | 2 |
| Phase Type | Single Phase |
| Wire Section Capacity | 25 mm² |
| Terminal Hole Type | ATY 4 × 7 |
| Housing Material | Flame Retardant Nylon |
| Conductive Material | Brass, Metal |
| Dimensions (W × H) | 6.5 × 12 cm |
| Brand / Manufacturer | Liujaos |
