PRODUCT DETAILS

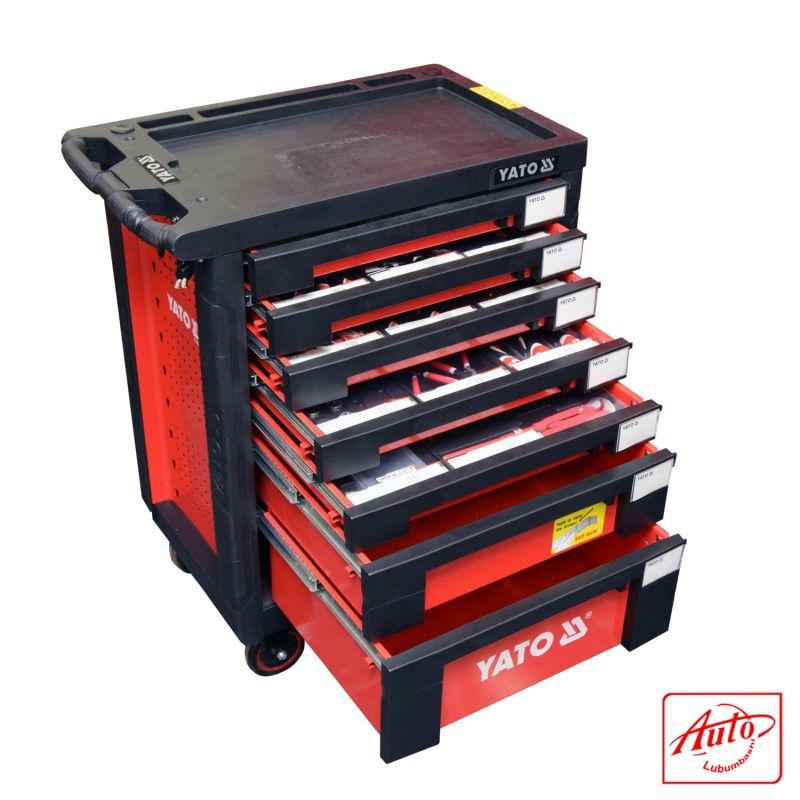

Storage cabinet tools Yato YT-55292 is designed to store tools. It is good for every professional or amateur workshop.
Product feature:
It consists of 7 drawers
4 upper drawers can hold 141 tools
Steel profiles guarantee robustness
Additional openings add additional elements
Safe storage
It is equipped with bumpers
The apron is made of non-slip polypropylene which ensures comfort
The wheels with the brake guarantee stability
Technical characteristics:
Number of drawers : 7
Load of the apron : 420kg
Number of tools : 189
Dimensions : 958x766x465mm
Weight : 79kg
Wedging YT-5531: Flat-span wrenches 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21mm;
YT-5532 Wedging: 22, 24, 27, 28, 30, 32mm CRV flat-span wrenches
YT-5538 wedging: HEX tips H4, H5, H6, H7, H8, H10, H12 (L = 30mm); H4, H5, H6, H7, H8, H10, H12 (L = 75mm); AISI S2; bity SPLINE M5, M6, M8, M10, M12 (L = 30 mm); M5, M6, M8, M10, M12 (L = 75mm); AISI S2; Torx bent T20, T25, T30, T40, T45, T50, T55 (L = 30mm); T20, T25, T30, T40, T45, T50, T55 (L = 75mm); AISI S2; 1/2 “adapter 12.7mm, 3/8” 9.5mm
Tightening YT-5537: 1/2 “Hex Sockets 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32mm (YT-1203 ~ YT-1243) 1/2 “ratchet CRV 6140 72T (YT-0732); extension 1/2 “127mm (YT-1247), 1/2” universal joint (YT-1252); spark plug socket 1/2 “, 16mm, 21mm (YT-1253 ~ YT-1254) crank type T 1/2” 255mm (YT-1243)
Wedging YT-5534: CR-V 180mm Universal Gripper (YT-1941); CRV long straight pliers, 160mm (YT-1943); long cranked forceps CRV 160mm (YT-1945); side clamp CRV 160mm (YT-1947)
Wedging YT-55455: Precise flat screw 1.4×50, 2.0×50, 2.4x50mm; precise cross screws PH00x50, PH0x50, PH1x50mm; cross screws PH0x75, PH1x75, PH2x100mm; S2; flat screw 3×75, 4×100, 5×75, 6x100mm
Wedging YT-55444: 200mm Pliers (YT-2451); 180mm pliers (YT-2459); 200mm wrench (YT-2072); 250mm wrench (YT-2073)
Wedging YT-5540: hammer 300g (L = 300mm); hammer 40mm (L = 350mm); burin 10x8x142mm, 12x10x152mm, 16x13x172mm
Wedging YT-55471: Scissors 140mm (YT-1947); knife 200mm (YT-7600); 19x20mm insulation tape (YT-8165); electric probe 4x190mm 250V (YT-2830); metal drills 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0mm;
Wedging YT-55453: Flat Blade # 2 200mm (YT-6185); Tile Metal Blade # 2 200mm (YT-6186); triangular metal blade # 2 200mm (YT-6187); semi-circular metal blade # 2 200mm (YT-6188); Circular Metal Blade # 2 200mm (YT-6189)
Stall YT-55465: Taps 3xM3x0.5, 3xM4x0.7, 3xM5x0.8, 3xM6x1.0, 3xM7x1.0, 3xM8x1.25, 3xM10x1.5, 3xM12x1.75; M3x0.5, M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.25, M10x1.5, M12x1.75; feeler 0.5 – 1.75mm; 27G; 28G; crank M7-M9; crank M3-M12
Wedging YT-55443: Clamp 180mm (YT-2136) EXTERNAL STRAIGHT; 180mm pliers (YT-2137) INTERNAL STRAIGHT; clamp 180mm (YT-2138) EXTERNAL BENT; 180mm pliers (YT-2139) INTERNAL BENT
Wedging YT-55478: 1 “pipe wrench 25mm L = 330mm (YT-2216); sheet metal shears L = 250mm (YT-1962); riveuteuse with rotating head 2.4, 3.2, 4.0, 4.8mm (YT-36011); rivet kit 9.6×3.2, 9.6×4.0, 12.7×4.8mm
Standard equipment:
Drawer 1: YT-5531, YT-5532, YT-5538
Drawer 2: YT-5537, YT-5534, YT-5540
Drawer 3: YT-55455, YT-55469, YT-55444
Drawer 4: YT-55465, YT-55443, YT-55453
Drawer 5: YT-55471, YT-55478
